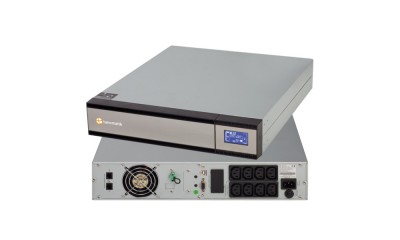

Tuncmatik Newtech Pro Rack Mount UPS | 100VA / 800W | PF 0.8 | 2 x 12V 9AH Batteries | TSK1811

მახასიათებლები

General Properties
Product Code
 TSK1811
Series description
 Newtech Pro Rack
Product description
 Newtech Pro Rack 1 kVA
Capacity / Power
 1 kVA / 800 W
Display LCD Panel
 Alarm
 Battery mode,
 Low battery,
 Over load,
 Error
Input
Low voltage transfer
 160 VAC - %80-100,
 140VAC - %70-80,
 120 VAC - %60-70,
 110 VAC - %0-60
Low voltage correction
 170 VAC - %80-100,
 150VAC - %70-80,
 130 VAC - %60-70,
 120 VAC - %0-60
High voltage transfer
 300 VAC ± %5
High voltage correction
 290 VAC ± %5
Frequency range
 40 - 70 Hz
Phase
 1 Phase + Notr + PE
Power factor
 ≥ 0.99 %100 load
Output
Output voltage
 200/208/220/230/240 VAC
Output power factor (PF)
 0.8
Voltage regulation battery mode
 ± %1
Frequency range sync. mode
 47-53 Hz or 57-63 Hz
Frequency range battery mode
 50 ± 0.25 Hz - 60 ± 0.3 Hz
Over load line mode
 %105-110 overload alarm,
 %110-130 transfer to by-pass in 30sec,
 %130-150 transfer to by-pass in 1,5sec
Over load battery mode
 %105-110 overload alarm,
 %110-130 shuts down in 30sec,
 %130-150 shuts down in 1,5sec
Current crest ratio
 3/1 max.
Harmonic distortion
 ≤ %2 THD (Lineer load )
 ≤ %8 THD (non-Lineer load)
Transfer time Line ↔ battery
 0 ms
Transfer time Inverter ↔ by-pass
 4 ms (tipik)
Waveform (Battery mode)
 Pure sinewave
Efficiency
Line mode    ~ %89
Battery mode    ~ %86
Battery
Type & number of battery
 12V 9Ah x 2
Charge time
 5 hours for recharging up to 90% capacity
Charge current
 1.0 A
Charge voltage
 27.4 VDC
Indicators & Alarm
LCD Panel
 UPS status,
 Load level,
 Battery level,
 Input/Output voltage,
 Discharge timer,
 Fault conditions
Alarm
 Battery mode,
 Low battery,
 Overload,
 Fault
Dimensions & Weight D x W x H (mm)
 415 x 440 x 89 [2U]
Net weight (kg)
 13.2
Environmental
Operating temperature
 0-40°C
Humidity
 20-90% RH (non-condensing)
Noise level (audible)
 < 50 dBA, from 1 m
Management
Smart RS-232 or USB
 Windows¨ 98/2000/2003/XP/Vista/2008, Windows¨ 7/8, Linux, MAC
SNMP (Optional)
    Power management from SNMP manager and web browser
